top prev next bottom Cowboy Card Holder -- 21 hours -- Can$ 2.00 -- Beginner

It has been about nine years since I did regular carving. I had no project planned for this winter. I needed a business card holder, I had a pattern, and happen to have a piece of tupelo laying around. That is how this project started.

top prev next bottom Pictures

Click on a picture to get a larger picture and then used the back button of the browser to return.

cowboy card holder -- the plan
The plan
cowboy card holder -- tools
Tools
cowboy card holder -- roughed out blanks
Roughed out blanks
cowboy card holder -- head taking shape
Head taking shape
cowboy card holder -- body taking shape
Body taking shape
cowboy card holder -- carving completed
Carving completed
cowboy card holder -- details burned in
Details burned in
cowboy card holder -- painted front
Painted front
cowboy card holder -- painted side
Painted side
cowboy card holder -- painted back
Painted back
cowboy card holder -- painted head
Painted head
cowboy card holder -- at work
At work

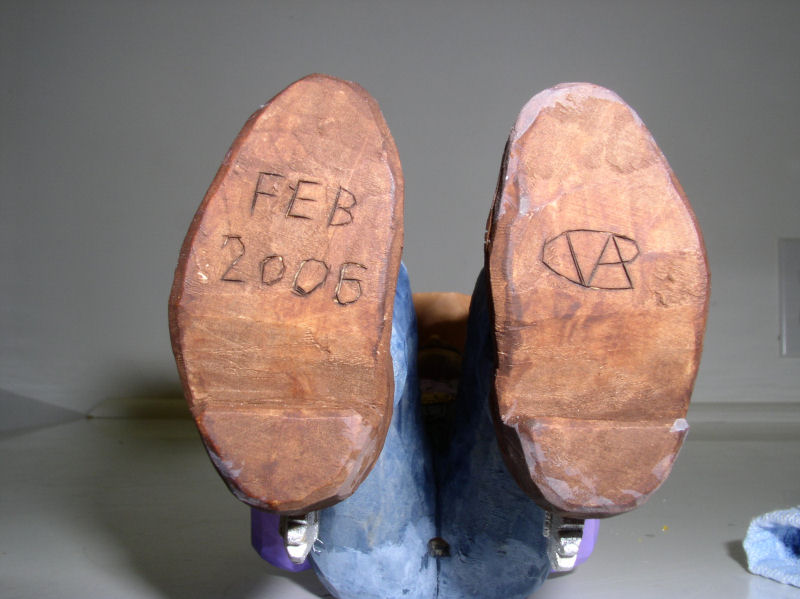

cowboy card holder -- dated and signed
Dated and signed

top prev next bottom Plans, Drawings, Sketches (inches)

The cowboy card holder is based on a pattern by Ralph C. Graves, camp Verde, Arizona. The pattern was published on page 63 of the July-August 2003 (Volumne 50, number 4) issue of Chip Chats from the National Wood Carvers Association.

top prev next bottom Materials List (inches)

A piece of tupelo. Basswood would do equally well.

top prev next bottom Required Tools

top prev next bottom Construction

Trace the front and side onto a piece of tupelo. Rough out the blank using a bandsaw. I roughed out two in case the first carving did not work out. Started working on the face and hat, but noticed that cross grain cutting gave terrible results. Sharpened carving knives and gouges again; slightly better but still not the way I remember how it should have been.

The piece of tupelo has been in the house for some 9 years, and with outside temperatures of -25°C (-13°F) in the winter the relative humidity is very low at about 15%. Ended up putting the carving in a plastic ziploc bag with a wet cloth for several nights. Gradually the carving went better and the cuts became cleaner. However, one night I overdid it a bit and the next day a grayish mould had formed on the carving. Yet another lesson learned.

Some of the detailing was done with a woodburner, such as the belt buckle, seems on clothing and cracks in leather boots. The challenge was the grain direction which follows the back of the cowboy. The weak points being the hat, the lower arms and hands, the toes and the spurs. By doing the weakest parts last and leaving lots of material on them while carving the other parts, resulted that I was able to carve the entire piece out of one block of wood without any breakage.

For the block the cowboy sits on I glued two pieces of pine together and used a rotary metal brush to create deep grooves as if the wood is very old.

Before painting and after painting I sprayed the cowboy with a matt Americana Acrylic sealer/finisher (hobby shop). The paints I use are Liquitex Acrylic Polymer Emulsions which you need to thin with water (arts supply). By thinning them sufficiently you need to do at least 2 or 3 coats for proper cover, but the advantage is that there is no paint layer built up and therefore the carving details remain visible and crisp. I did only 2 coats so that some wood was vaguely shining through which gave the jeans and shirt that slightly washed effect. Used Humbrol hobby paint as well for the belt buckle and spurs (hobby shop).

jeans Liquitex payne's gray & cerulean blue; 2 coats
shirt Liquitex brilliant purple; 2 coats
hat Liquitex titanium white & raw siena; 2 coats
vest & tie Liquitex ivory black; 2 coats
face, ears, hands Liquitex titanium white & raw siena; 2 coats
wash of payne's gray for beard
hair, mustache Liquitex payne's gray; 1 coat
wood that shines through similates lighter streaks
boots, belt Liquitex burnt umber; 2 coats
eyeballs, teeth Liquitex titanium white; 1 coat
eyes Liquitex permanent light blue; 1 coat
spur straps Liquitex raw siena; 1 coat
duo block where
cowboy sits on
Liquitex paint left over from above. Applied in patches
in the direction of the wood grain. Use also a bit of
emerald green to represent moss. Finally apply a few washes
of payne's gray to give a uniform weathered effect.
belt buckle Humbrol enamel gold
spurs Humbrol enamel silver

A "wash" is paint thinned with an excess of water.

Warning -- some of the Liquitex colours are poisonous!
